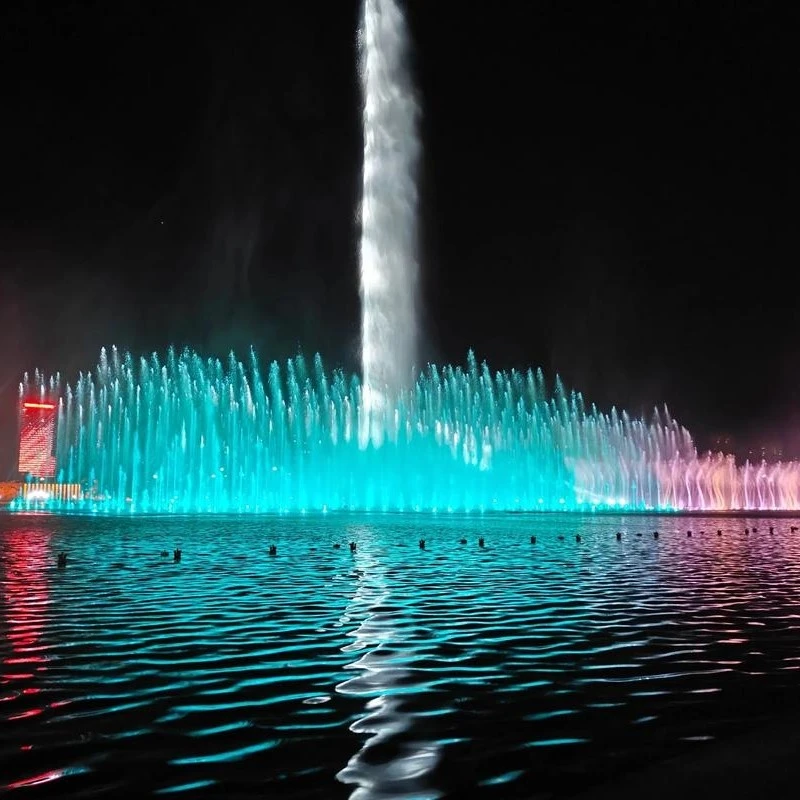

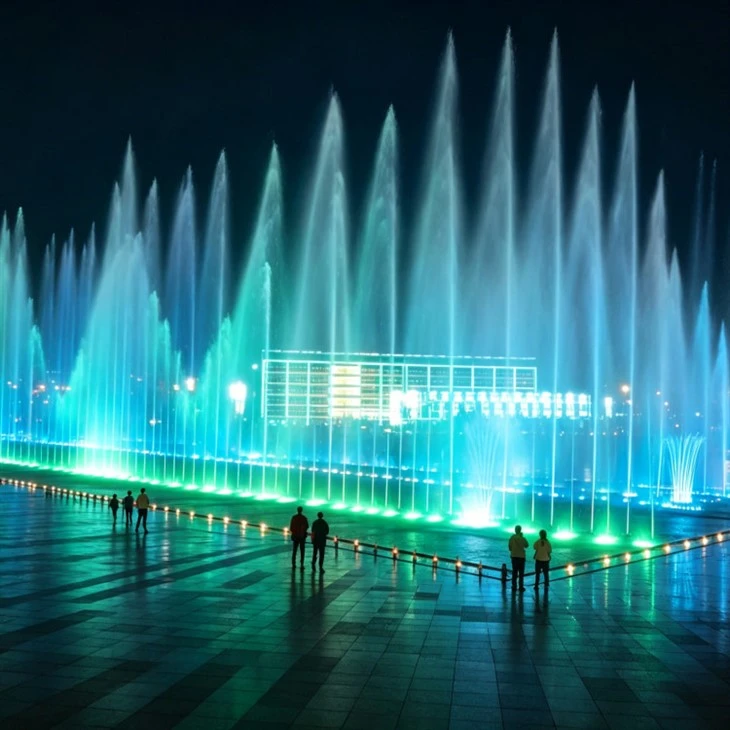

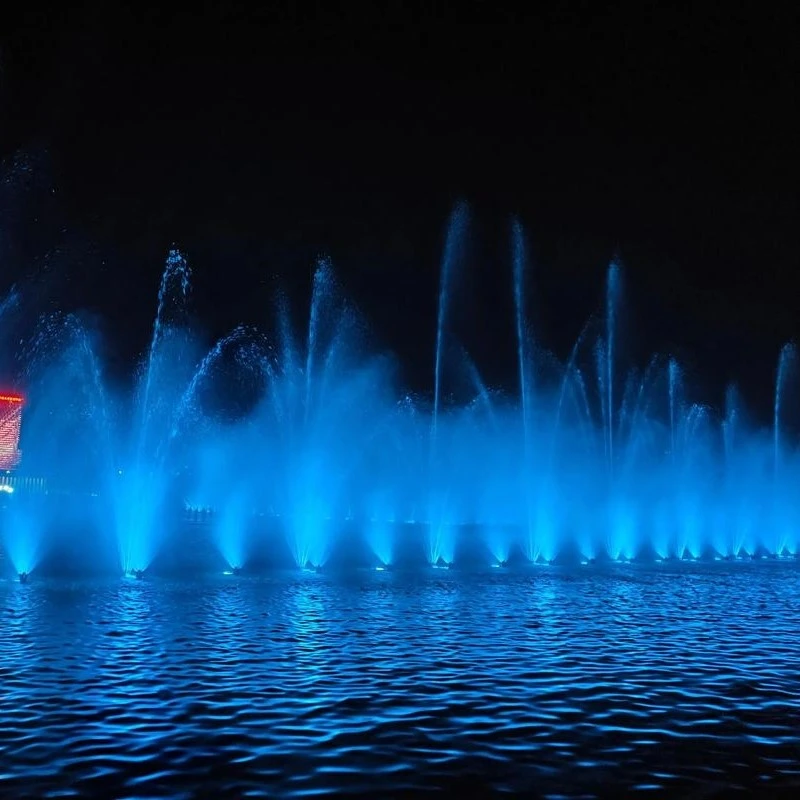

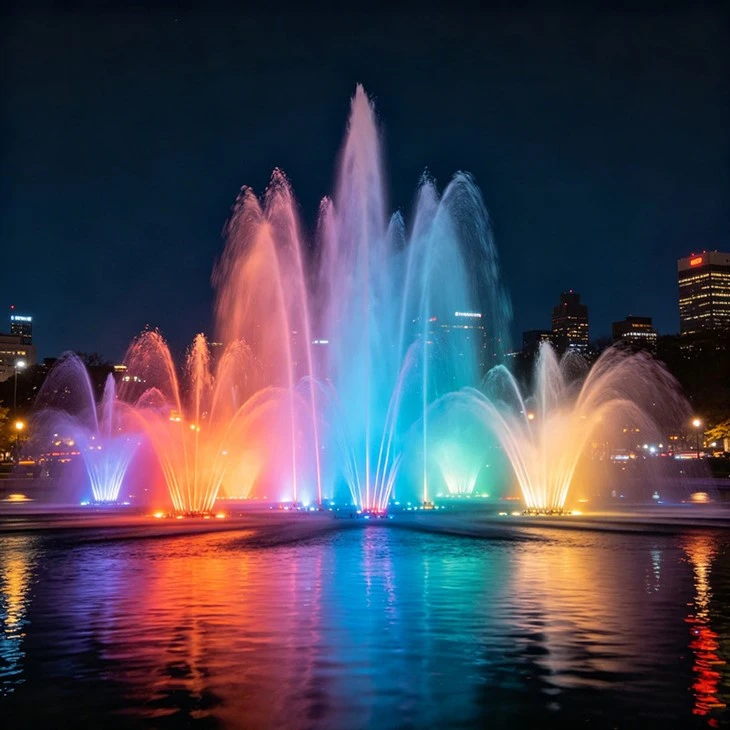

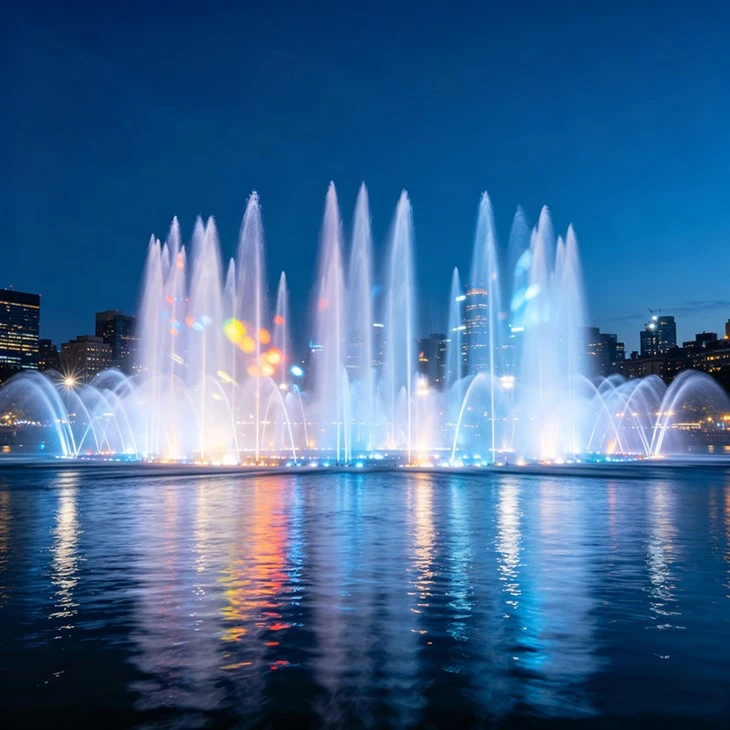

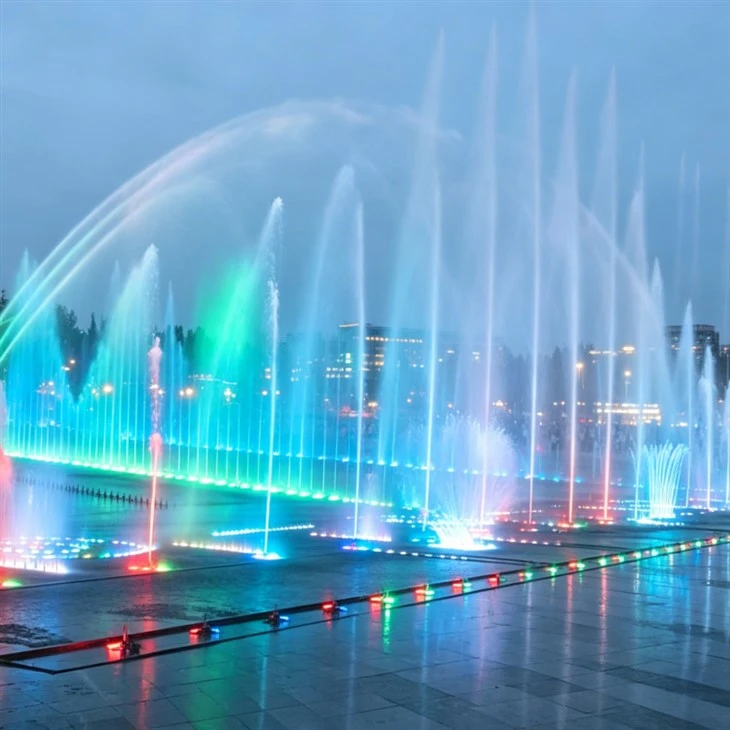

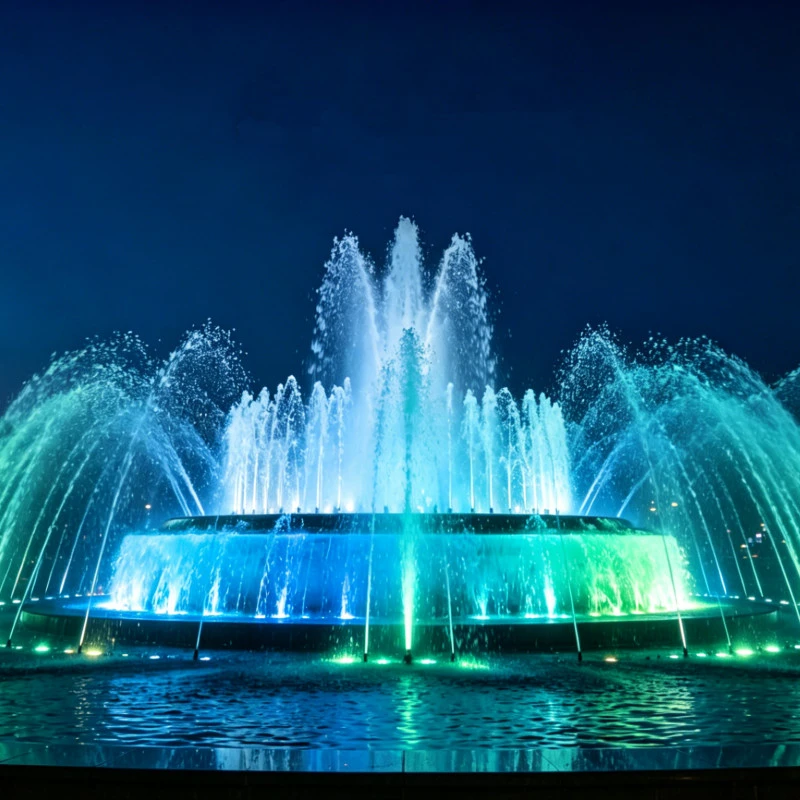

Large Scale Music Fountain
A large-scale musical fountain is a comprehensive artistic installation that integrates music, lighting, and water features. Through programmed control of water pumps, nozzles, and lighting systems, the water flow rises and falls in time with the music, creating a dynamic water show. Its core function lies in combining auditory art (music) with visual art (water features and lighting) to create a captivating public space experience. It is widely used in urban plazas, theme parks, commercial centers, and tourist attractions.
Technical Principles and Components
The technical system of a large-scale musical fountain primarily consists of three parts:
1. Water Feature System: This includes submersible pumps, nozzles, piping, and a water basin. The submersible pump serves as the core power equipment, responsible for pumping water from the basin to the nozzles. By adjusting flow rate and pressure, it controls the height and shape of the water jets. There are various types of nozzles (such as jet nozzles, rotating nozzles, and mist nozzles), which can produce different water patterns such as columns, fans, and spheres.
2. Music Control System: Through computer programming, music signals are converted into electrical signals to control the start/stop, variable-frequency speed regulation, and movements of the nozzles, achieving synchronization between water patterns and musical rhythms. For example, energetic music corresponds to high water jets, while soothing melodies correspond to low-lying mist.
3. Lighting System: Utilizes LED underwater lights or laser lights, which interact with the music control system via the DMX512 protocol to dynamically adjust light color, brightness, and flashing frequency, enhancing the visual effect.
Performance Parameters and Industry Standards
The scale of large musical fountains is typically measured by spray height, coverage area, and the number of nozzles. For example, a medium-sized musical fountain can reach a spray height of 30–80 meters, cover an area of approximately 500–2,000 square meters, and feature over 100 nozzles; large-scale projects can exceed 100 meters in spray height and cover an area of over 5,000 square meters. Their performance must comply with standards such as the "Technical Specifications for Fountain Engineering" (JGJ 16-2016) to ensure structural safety, electrical explosion protection, and water quality.
Application Scenarios and Value
1. Urban Landscapes: As landmark public art, large-scale musical fountains can significantly enhance a city's image, attract tourists, and boost surrounding commerce. For example, the Dubai Music Fountain, with a total investment exceeding $200 million and a spray height of 150 meters, has become a world-renowned tourist attraction.
2. Theme Parks: In theme parks, musical fountains are often combined with laser shows and fireworks displays to create immersive nighttime attractions. For instance, Shanghai Disney's "A Dream of Light" show incorporates musical fountain elements.
3. Commercial Event Enhancement: Shopping malls and hotels use musical fountains to create a high-end atmosphere, increasing customer dwell time and encouraging spending.
Supporting Equipment and Maintenance
Large-scale musical fountains require specialized equipment to ensure stable operation:
1.Submersible Pumps: Corrosion-resistant, high-efficiency models must be selected, such as those with 304 stainless steel pump bodies. The flow rate must match the total demand of the nozzles (for example, a flow rate of 120 m³/h can support approximately 50 medium-sized nozzles).
2. Control System: Utilize industrial-grade PLCs or dedicated fountain controllers that support multi-channel signal synchronization.
3. Water Treatment: Install filtration and disinfection equipment to prevent algae growth and nozzle blockages.
A musical fountain uses ever-changing water patterns combined with colorful lighting to reflect the essence and theme of the music. In a well-designed musical fountain, the evolving water patterns should fully express the musical composition. It builds upon a program-controlled fountain by adding a music control system. The computer identifies, decodes, and encodes audio and MIDI signals, ultimately outputting the signals to the control system. This ensures that the fountain's patterns and lighting changes remain synchronized with the music, achieving a perfect fusion of water patterns, lighting, and color variations with the musical mood. This makes the fountain performance more vivid, meaningful, and a true embodiment of the art of water. Musical Fountains: These fountains adapt to the rising and falling rhythms of the music. Users can create their own music programs within the editing interface. The playback system ensures a unified atmosphere of music, water, and lighting, with all elements playing in perfect synchronization.
