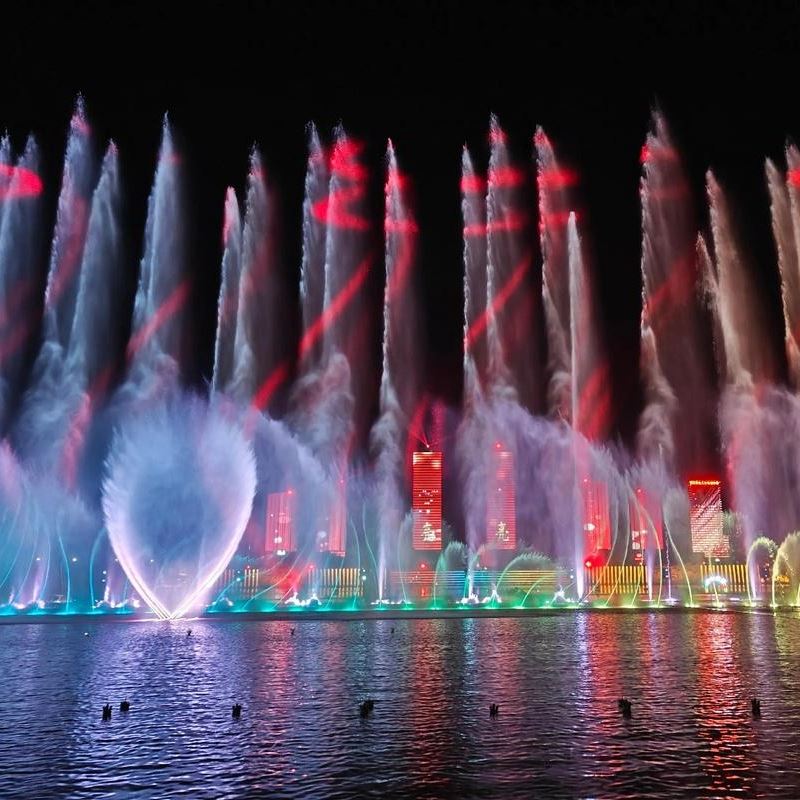

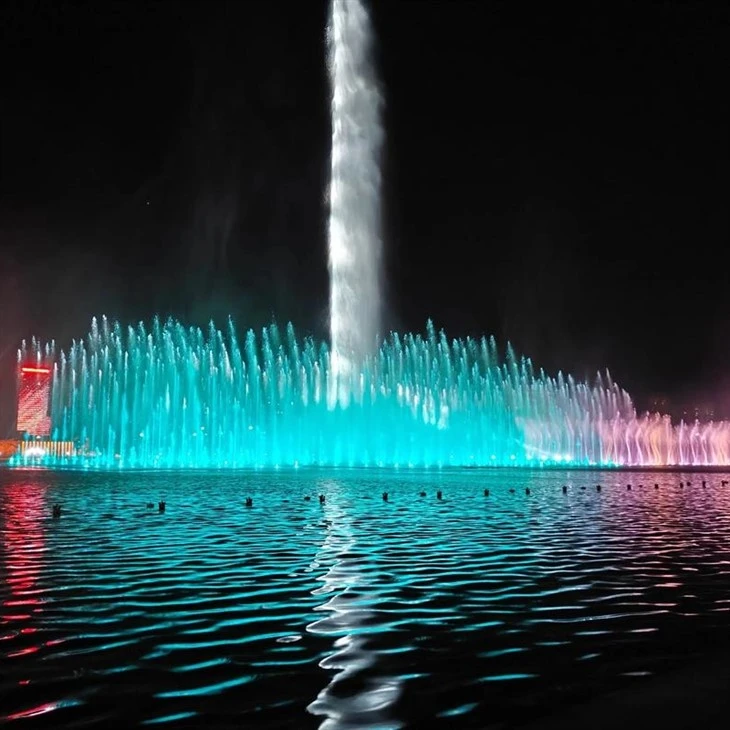

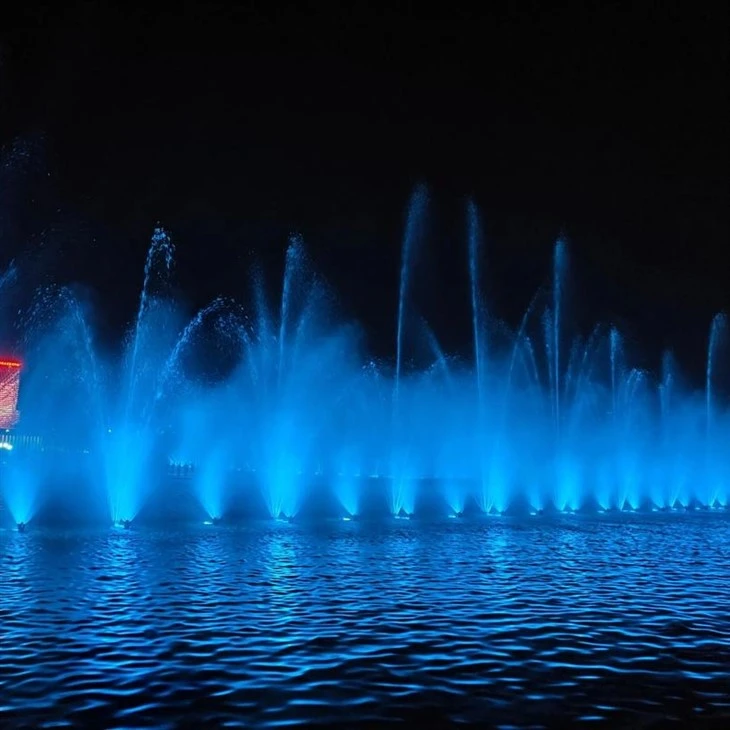

Large Scale Floating Lifting Fountain
Large Floating Fountain: What We Can Build for You on Open Water
When we build a large fountain for you on open water - an artificial lake, a river channel, or a scenic lake - we know you care about four things: civil work costs, water level fluctuations, wind and wave resistance, and winter operation. The large floating fountain we provide is engineered to solve exactly these four problems. We do not touch your lakebed with any civil works, we do not alter your water terrain, our equipment floats and self-adapts to water level changes, rises for performances, and submerges out of sight when not in use.
The large floating fountain we provide is a modular, lifting-capable floating water feature system developed specifically for artificial lakes, natural river channels, open urban water bodies, and scenic lakes in cultural tourism projects. It is the upgrade replacement for traditional fixed fountains.
The operating logic of the system we deliver to you is straightforward:
1. Normal state
The entire system floats on the water surface, flexibly secured by underwater anchor blocks and wire ropes - no drifting, no tilting.
2. Performance time
Our lifting mechanism smoothly raises the nozzles and water-form equipment to the set height, and the fountain performs multiple water shapes in sync with the music.
3. Non-performance time
One-button descent hides the entire system below the water surface. Your lake returns to a clean, flat appearance, and the equipment is protected from wind, rain, and floating debris.
Whether your project is nightscape lighting, a cultural tourism night-economy upgrade, or a landscape water system improvement, we can provide you with a complete solution.
What Do We Solve for You Compared with a Traditional Fixed Fountain?
| Comparison Item | Traditional Fixed Fountain | Our Floating Lifting Fountain |
|---|---|---|
| Civil works | Requires lakebed excavation and foundation pouring | Zero civil works - modular assembly, then direct in-water installation |
| Water level impact | Level fluctuations directly change jet height and ruin water shapes | Our floating structure self-adapts and self-levels; water shapes stay stable year-round |
| Wind and waves | Structure easily damaged by waves | Our equipment withstands wind and waves of force 4–6, with anti-capsize mooring design |
| Winter protection | Pipelines easily freeze and crack | We sink it for freeze protection and drain the pipelines |
| Landscape impact | Equipment exposed all year, hurting the view | We sink and hide it when not performing; your lake stays clean |
| Construction cost | High civil and construction costs | We cut your civil and construction costs by more than 50% |
What Equipment Do We Deliver to You?
The complete system we deliver consists of six core modules, with modular integrated structure for fast installation and strong stability (see the specification table in Section 6 for exact values):
Anti-corrosion floating platform - the foundation of the whole system: 304 stainless steel / high-density composite floats, anti-corrosion self-balancing structure with marine-grade corrosion treatment, resistant to lake water immersion, sun aging, and water flow erosion.
Underwater intelligent lifting mechanism - for performance and concealment: IP68 fully sealed underwater protection. During performances we raise the nozzles smoothly to the set height; after performances we lower and hide them. Motion is smooth, constant-speed, quiet, and jerk-free.
Stainless steel pump and nozzle system - executing the water shapes you want: 304 stainless steel submersible fountain pumps and nozzles, with optional 1D / 2D CNC swinging nozzles. Supports high straight jets, firework scatter, CNC swinging, and combined water-shape performances.
Full-color lighting system - shaping your night atmosphere: RGB full-color LED underwater lights, DMX512 signal controlled, changing in sync with the water shapes.
Intelligent control and show system - the brain of your show: PLC + music synchronous controller, with millisecond-level synchronization of water shapes, lighting, and sound. We support remote operation and maintenance for you, with manual / automatic / timed / program-loop modes.
Multi-point anchoring system - keeping your equipment stable: Underwater pile foundation / flexible anchor-rope fixation, adapting to water level changes and eliminating drifting and tilting.
Five Core Advantages We Bring to You
Zero civil works - we save you cost and construction time
We do not excavate your lakebed, do not pour foundations, and do not modify your existing water body structure. The entire system is assembled from modules and installed directly in the water, greatly shortening the construction period. Compared with a traditional fixed fountain, we cut your civil and construction costs by more than 50%. Suitable for both new water bodies and landscape upgrade projects.
All-environment adaptability - we guarantee you stable operation
The floating platform we equip uses 304 stainless steel / high-density anti-aging composite material with marine-grade corrosion treatment. The equipment handles regular waves of 0.5–0.8 m, operates normally in wind force 4–6, and suits a wide range of water depths - covering the conditions of most urban landscape water bodies.
Intelligent lifting and concealment - we elevate your landscape quality
We equip an IP68 fully waterproof underwater lifting mechanism with customizable lifting stroke. Motion is smooth, constant-speed, quiet, and jerk-free. Rise for a stunning water show; sink and hide after shutdown - we help you achieve both dynamic show effects and a calm, clean lake surface.
Multi-dimensional water-shape coordination - we enrich your show effects
We equip 304 stainless steel dedicated fountain pumps and multi-function nozzles, supporting high straight jets, firework scatter, CNC swinging, and combined water shapes. The main jet height is customizable from 5 to 100 m. Combined with DMX512 full-color RGBW underwater lighting and millisecond-level music synchronization, we create an immersive night water show for you.
Four-season suitability - we make maintenance easy for you
The equipment we deliver operates stably in water temperatures of 0–45°C. In winter it can be sunk for freeze protection with pipelines drained, eliminating freeze damage. The fully modular design allows the whole platform to be towed to shore for maintenance, with no complex underwater construction needed - simple daily operation and low failure rate.
Beyond the Water Show, What Does This Fountain Bring to Your Site?
01
Microclimate regulation - making your lakeside more comfortable
The water mist produced by the fountain raises local air humidity and lowers local temperature. For your city or resort project in hot seasons, the fountain shoreline becomes a cool resting area where residents and visitors want to stay.
02
Gathering crowds - turning your waterfront into a social hub
Water shows naturally attract people - evening strolls, tourist check-ins, and festival events will all happen around your fountain. The scheduled show programs we choreograph for you will make your water body the most vibrant public space in the area.
03
Raising property and project value
For your real estate and commercial projects, a landmark water feature directly lifts the overall aesthetic appeal and market attractiveness of the property - your investment shows up in higher property value and foot traffic.
Basic Technical Specifications
| Parameter | Specification Range |
|---|---|
| Floating platform material | 304 stainless steel / high-density composite floats, anti-corrosion self-balancing structure |
| Lifting stroke | 0.5–3 m, customizable to on-site water depth |
| Lifting mechanism protection | IP68 fully sealed underwater protection |
| Wind and wave resistance | Withstands force 4–6 wind and waves, with anti-capsize mooring design |
| Main jet height | 5–100 m, adjustable combined water shapes |
| Power supply | Three-phase 380V 50Hz; underwater circuits at 24V safe low voltage |
| Pump material | 304 stainless steel submersible dedicated fountain pumps |
| Nozzle material | 304 stainless steel; optional 1D / 2D CNC swinging nozzles |
| Underwater lighting | RGB full-color LED underwater lights, AC24V, DMX512 signal controlled |
| Control system | PLC + music synchronous controller, remote O&M supported |
| Music synchronization latency | ≤50 ms, coordinated water shapes, lighting, and audio |
| Suitable water bodies | Artificial lakes, river channels, open landscape water |
| Operating water temperature | 0–45°C, with winter freeze-protection drainage system |
| Platform mooring | Underwater pile foundation / flexible anchor-rope fixation, adapting to water level changes |
| Operating modes | Manual / automatic / timed / program-loop multi-mode switching |
What Exactly Do We Do for You in Different Water Bodies?
| Your Water Body Type | What We Specifically Do for You |
|---|---|
| Artificial lake | We determine platform scale and jet height based on your lake area and sightline analysis, creating the visual focal point of your lake |
| Natural river channel | We design the mooring solution around your water flow conditions, ensuring stable platform operation under current erosion |
| Open urban water | We build you a landmark high jet + night lighting show, shaping the signature card of your city nightscape |
| Scenic lake in cultural tourism projects | We choreograph immersive music-and-light night-tour water shows, upgrading your night tourism experience |
Project Selection: Four Things We Help You Decide
● Jet height and water shapes: For daily landscape use, we recommend medium jet heights with combined water shapes. If you want a city landmark or a night-tour highlight, we can customize the main jet to the hundred-meter class - high straight jets, firework scatter, and CNC swinging combined to your show requirements.
● Lifting stroke: We customize it within 0.5–3 m based on your on-site water depth and concealment requirements, guaranteeing both performance height and hidden storage effect.
● Mooring method: Based on your water body conditions, water depth, and wave situation, we select underwater pile foundation or flexible anchor-rope fixation for you, ensuring platform stability in force 4–6 wind and waves.
● Platform material: 304 stainless steel platforms are solid and durable; high-density composite floats are economical and anti-aging - we advise you based on your budget and water quality.
You only need to provide three pieces of information: water body area, water depth and level variation, and local wave conditions. We will then provide you with a free customized design proposal and quotation.
Customization Scope: All of These Can Be Tailored to Your Needs
Jet height and water-shape combinations: Main jet 5–100 m customized to your needs; we choreograph multi-water-shape combinations for you
Lifting stroke: 0.5–3 m customized to on-site water depth
Platform scale and material: Determined by your water body dimensions and budget
Lighting effects: Quantity, brightness, and dynamic effects of RGB full-color lights are all configurable
Show programs: We choreograph water-shape, lighting, and sound programs synchronized to your music tracks
Mooring solutions: Underwater pile foundation / flexible anchor-rope fixation designed to your water body conditions
Winter freeze protection: We equip sinking freeze protection + pipeline drainage design for you
Large-water-body water shows test comprehensive engineering capability - wave calculation, mooring design, lifting synchronization, and show choreography; none can be missing. Here is how we at Mingchuang do it:
Modular delivery, fast installation
We complete assembly and testing of the six core modules in our factory, then install directly in the water on site, greatly shortening your construction period.
Anti-capsize mooring, engineered design
We design the mooring solution based on your water body's wave data and depth conditions - underwater pile foundation or flexible anchor-rope fixation - ensuring the platform does not drift or tilt in force 4–6 wind and waves.
Proven high-jet capability
Main jet 5–100 m customized to your needs. From city landmark high jets to cultural tourism night water shows, we have mature solutions to support you.
Show choreography included in delivery
Beat-accurate programs with music synchronization latency ≤50 ms, and coordinated choreography of water shapes, lighting, and sound - our team completes all of it before delivering to you.
More than 20 years in fountain engineering, serving thousands of clients
Our projects cover municipal squares, parks, scenic areas, cultural tourism performances, and other water and land scenes.
Free design, free quotation
Send us your water body data and receive a customized proposal and quotation. For the same quality and effects, our price and service are better.
FAQ
Q1: Do we really need no civil works at all?
A: Yes. The entire system is assembled from modules and installed directly in the water - no excavation of your lakebed, no foundation pouring, no modification of the existing water body structure. It is especially suitable for landscape upgrades of both new and existing water bodies.
Q2: Will the platform be blown away or capsized by wind and waves?
A: No. We secure the equipment with anchor blocks and wire ropes in a flexible fixation with anti-capsize mooring design, withstanding force 4–6 wind and waves. We design the mooring solution specifically around the actual wave conditions of your water body.
Q3: Can the equipment be fully hidden when not performing?
A: Yes. Our lifting mechanism lowers and hides the equipment below the water surface with one button, returning your lake to a clean, flat appearance. The submerged storage also protects the equipment from wind, rain, and debris impact, extending its service life.
Q4: How is winter freeze protection handled?
A: The equipment we deliver operates in water temperatures of 0–45°C. In winter it can be sunk for freeze protection with pipelines drained, eliminating freeze damage. We also provide winter freeze-protection drainage solutions for freezing regions.
Q5: We want a hundred-meter-class high jet. How do we finalize the solution?
A: The main jet height is determined by your water body dimensions, viewing distance, and budget. We match the corresponding pump sets, nozzles, and power configuration for you. Send us your water body data and receive a free proposal.
Q6: We are an overseas client. Do you support export?
A: Yes. We provide equipment export, installation guidance, commissioning training, and remote technical support. The control system supports remote O&M - even when we are not on site, we keep your project running smoothly.
Whether you want to enhance a city nightscape, upgrade cultural tourism night tours, or add a landmark landscape to your real estate property, Mingchuang Gardens can provide you with a professional solution. Send us your water body data and receive a free customized design and quotation. We look forward to building a unique and captivating water space with you.
